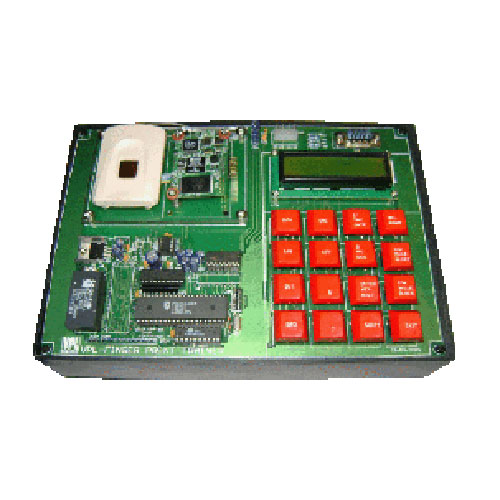

Finger Print Trainer VPL FP I
The VPL Finger Print Trainer (VPL-FP-I ) is designed for the training finger print recognition and verification. It can store up to 468 fingerprint templates on board flash which can be extended upto 1000 templets. Its core is ARM7TDMI32 bit RISC core with 8k byte cache.
SALIENT FEATURES of Finger Print Trainer (VPL-FP-I)
- Fingerprint registration and verification.
- Up to 468 fingerprint templates can be stored on board flash.
- 122×32 dotmatrix LCD with background light support.
- Two RS232 ports and one RS485 port for connecting to PC.
- 7 expandable connectors for connecting to external circuits.
- 4K bytes EEPROM for saving any general data.
- 16 keys pinpad for user input.
- Real time clock display.
- Power can be retrieved from the PS/2 port or external adapter.
- Built in demo application firmware.
- Built in debug monitor for manual operation of the board.
- 3 options of ‘USER’, ‘VIP’ & ‘ADMIN’ during registration.
- User can enter time and date through keypad.
- Can connect external modules like Smart Card Reader etc.
TECHNICAL SPECIFICATIONS
- Power supply: 220V/AC @ 50 Hz ±10%
- Current input: Typically 250mA (550mA working current)
- Core: ARM7TDMI 32 bit RISC core with 8k byte cache
- Memory: 512K byte Flash, 2M byte SDRAM, 4K byte EEPROM
- Communication: RS232C
- Connectors: 8 pin GPIO, 12 keyboard scan line, SPI, Mono LCD, 2 external interrupt, JTAG, IrDA, MultiMedia card, UART, Buzzer, Smartcard
- Storage: Up to 468 fingerprint template expandable upto 1000 template
